304/316 Stainless Steel Bugle Batten Screws with 4 Ribs
Batten screws are pretty much an Australian invention, a kind of heavy duty fastener widely used into hard landscaping, decks and outdoor furniture and structures.
Batten Screw has a countersunk head so it lies flat in the timber and has an internal hex drive rather than a phillips or pozidrive head so you can get plenty of leverage to tighten them up. As a heavy duty fastener, it come in various lengths starting at 50mm and are all 14g (6.3-6.5mm) thick. To make countersinking even easier they are manufactured with ribs under the head so you can drive them straight in and they will cut the countersink themselves. The head is also a special shape known a s a bugle head instead of a straight countersink due to the fairly shallow change in angle.
Taking the design a step further they also benefit from a type 17 point, this is a self drill point allowing the screws to drill its own hole as you drive it in while the coarse threads clear the cuttings, some hardwoods still need a pilot hole though as they can be as hard as concrete
Specificatoin
Material: Stainless Steel 304, 316(Marine grade) Batten Decking Screws
Head Type : Bugle Head w/ 4 Nibs
Drive Type: Square Drive
Thread Type: Coarse Thread
Point Type: Type 17 Point
Diameter: #14 (6.3 ~ 6.5mm)
Length: 13 - 150mm, 1/2 - 6"
Contact
If you are interesed in our stainless steel bugle batten screws, please send us email (click on following email address) or call us directly. Best solution or suggestion must be provided in 24 hours.
| Tony Xu |
| Email | info@drolee.biz |
| Mob/Whatsapp | +8618658407226 |
| Skype | sales_drl@hotmail.com |
| Daniel Lee |
| Email | sales@drolee.biz |
| Mob/Whatsapp | +8615867456779 |
| Skype | busiessman0011 |
| Website | www.drolee.biz |
|
|

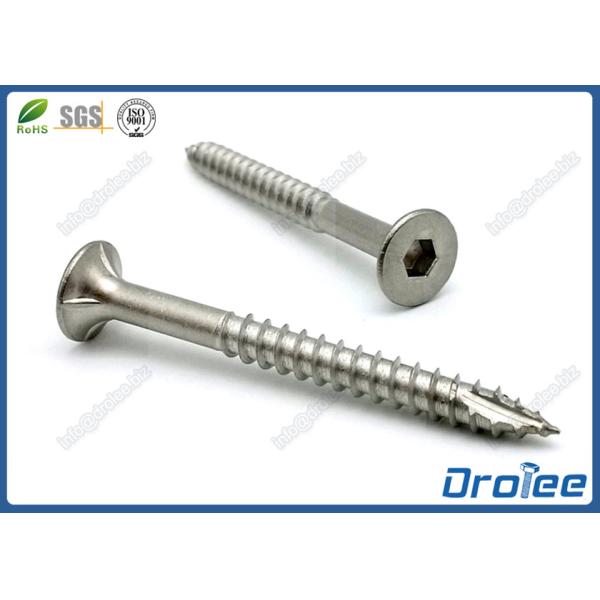

304/316 Stainless Steel Bugle Batten Screws for Timber Wood Images
|
